Enhanced sampling

Given a reasonably equilibrated configuration we can try enhanced sampling of the Volmer step. To generate a simple plumed.dat file, you can use appa plumed volmer. View the structure and note the (zero-based) indices of the hydrogen atom that you want to transfer, the nearest surface atom, and the most accessible oxygen atom. Then use the command as follows:

Usage: appa plumed volmer [OPTIONS]

  Write plumed.dat input file for a Volmer step calculation.

Options:
  -o, --oxygen_id INTEGER
  -h, --hydrogen_id INTEGER
  -s, --surface_id INTEGER
  --stride INTEGER           How often to print to COLVAR  [default: 10]
  --help                     Show this message and exit.

For example:

appa plumed volmer -o 107 -s 56 -h 64

You can then setup a molecular dynamics run with appa lammps, such as

appa lammps initial.xyz --architecture grace --model ~/plumed-test/train/seed/1/final_model --steps 800000 --plumed-file plumed.dat

You can also write different PLUMED files, such as umbrella sampling of a reaction coordinate suggested by Kronberg & Laasonen, and Santos et al..

With some Python code you can define the initial $\xi$:

pos = atoms.positions
d_OH = np.linalg.norm(pos[oxygen_id, :] - pos[hydrogen_id, :])
d_MH = np.linalg.norm(pos[surface_id, :] - pos[hydrogen_id, :])
xi0 = d_OH - d_MH

Upon defining the number of warmup timesteps, a kappa and a cv_target, you can use Python string formatting to write part of a PLUMED file such as

# Reaction coordinate xi = d(O-H) - d(Pt-H)
xi: COMBINE ARG=d_OH,d_MH COEFFICIENTS=1,-1 PERIODIC=NO

# Harmonic umbrella restraint
restraint: MOVINGRESTRAINT ...
    ARG=xi
    STEP0=0 AT0={xi0:.2f} KAPPA0=0.0
    STEP1={warmup} AT1={cv_target:.2f} KAPPA1={kappa}
...

However, in my experience this results in the proton diffusing along the surface, creating a large $d_\mathrm{OH}$ and $d_\mathrm{MH}$, resulting in a $\xi\approx0$ but a structure very different from the expected transition state. Adding more training data around the TS might help.

Analysis¶

To get a free-energy surface from metadynamics, you can use

module load 2025
module load PLUMED/2.9.4-foss-2025a
plumed sum_hills --hills path/to/my/HILLS
module purge

(since I’m not sure how to call the plumed that was built upon LAMMPS install).

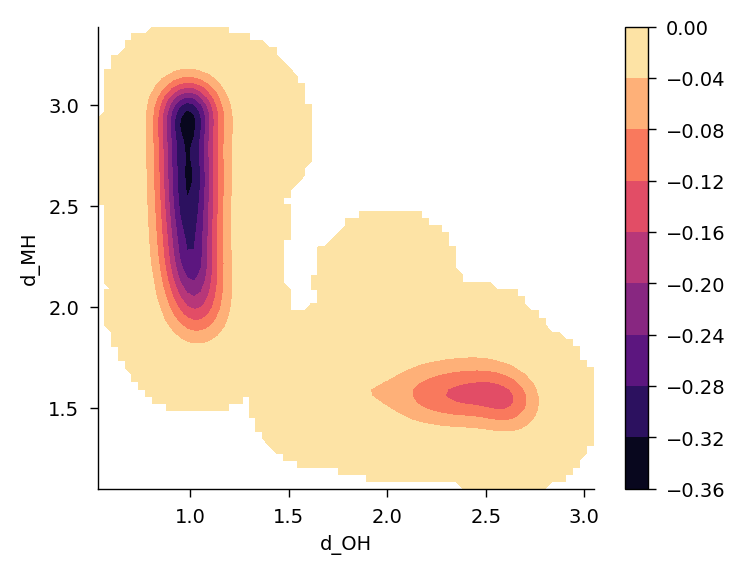

You can plot it to get a result like this:

import numpy as np
import matplotlib.pyplot as plt
plt.style.use('data/lucas.mplstyle')

data = np.loadtxt('data/fes.dat', comments='#')
cv1 = data[:,0]
cv2 = data[:,1]
energy = data[:,2]

plt.figure(figsize=(4,3))
plt.tricontourf(cv1, cv2, energy, levels=10, cmap='magma')
plt.colorbar()
plt.xlabel('d_OH')
plt.ylabel('d_MH')
plt.show()

Probably limited training data, limited metadynamics sampling time, and limited training time all contributes to this result not being amazing. The proton crossed the energy barrier once in this run. But it still gives an idea of what is possible with MLIPs.
